Introduction
Transferring corrosive and hazardous chemicals has always been one of the greatest challenges in industrial operations. Leakage, equipment failures, and safety risks can result in unplanned downtime, environmental hazards, and costly repairs.

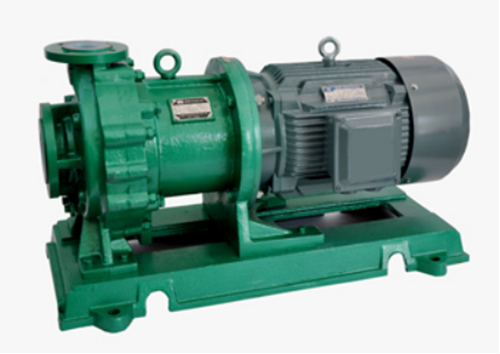

The IMD series magnetic drive pumps are specifically designed to overcome these challenges. With a sealless design, advanced materials, and innovative engineering, they ensure safe, reliable, and energy-efficient handling of corrosive, flammable, explosive, toxic, and volatile media.
Why Traditional Pumps Fall Short
Conventional centrifugal pumps often rely on mechanical seals, which are prone to wear, leakage, and failure when exposed to aggressive chemicals. This not only creates safety hazards but also drives up maintenance costs.
The IMD magnetic drive pump eliminates these issues by using magnetic coupling transmission instead of mechanical seals, ensuring leak-free and reliable operation.
Key Design Features of IMD Magnetic Drive Pumps
Sealless, Leak-Free Design
IMD pumps are built without a mechanical shaft seal. Instead, they use a magnetic coupling to transfer power, completely eliminating the risk of leakage when handling hazardous or corrosive liquids. This ensures a safer and cleaner working environment.
Reinforced Isolation Sleeve
The isolation sleeve is manufactured from enhanced carbon fiber or ETPU materials, offering outstanding mechanical strength, reliability, and durability. Its all-plastic construction eliminates magnetic eddy current losses, minimizing heat generation and improving overall energy efficiency.
Energy-Efficient Direct-Drive System
With a direct-drive design, the magnetic coupling is mounted directly onto the motor shaft. This reduces mechanical losses associated with rolling bearings, resulting in higher efficiency, quieter operation, and a more compact footprint that saves valuable installation space.
Convenient Back-Pull-Out Structure
The unique back-pull-out design allows internal components to be inspected or replaced without disconnecting the pump from the piping system. Routine maintenance can be handled by a single person, reducing downtime, simplifying service, and lowering maintenance costs.
Safety and Operating Guidelines
To maximize performance and safety, operators should follow these key precautions:
No Dry Running
● The pump must always be filled with liquid before startup. Running dry will damage the bearings and isolation sleeve.
No Solids Allowed
● IMD pumps are not suitable for liquids containing solid particles. Use a filter if necessary.
Magnetic Field Warning
● The strong magnetic field can interfere with electronic medical devices (e.g., pacemakers). People with such devices must stay away from the pump during operation.
Temperature Monitoring
● Regularly monitor the pump and motor temperature rise.
● Bearing temperature rise should not exceed 40°C, and the maximum allowable temperature is 90°C.
● For B-class insulated motors, the maximum permissible temperature is 130°C at an ambient temperature of 40°C.
Flow Control
● Never control flow by throttling the inlet valve, as it may damage the impeller and other components.
● When system head is lower than the rated head, adjust the outlet valve to keep flow at the rated point. Running at excessive flow may overload the motor and cause unsafe conditions.
Applications Across Industries
The IMD series magnetic drive pump is widely used in:
● Chemical processing – handling strong acids, alkalis, solvents, and other corrosive liquids.
● Electroplating & surface treatment – circulating aggressive plating solutions.
● Pharmaceuticals & fine chemicals – safe transfer of high-purity and toxic media.
● Environmental protection – transporting corrosive wastewater and hazardous effluents.
● Energy & metallurgy – applications requiring leak-free and reliable chemical pumping.
Conclusion: Safe and Efficient Chemical Transfer with IMD Pumps
Handling corrosive and hazardous liquids safely requires a pump that deliverszero leakage, superior corrosion resistance, and reliable performance.TheIMD series magnetic drive pumpcombines all these advantages with user-friendly maintenance and energy efficiency.
If your operations face issues like leakage, frequent maintenance, or safety risks, upgrading to an IMD magnetic drive pump can protect your workforce, your equipment, and your bottom line.
Contact us today to learn more about IMD magnetic drive pumps and find the right solution for your chemical transfer needs.
