IHF centrifugal chemical pump, China IHF centrifugal chemical pump Manufacturers, Suppliers, Factory

Liquid

acid, alkali,

salt solution,

strong oxidant,

organic solvents,

corrosive slurries, solvents,

hydrocarbons and other strong corrosive medium,

ammonia water ion film caustic soda,

waste water

Applilcation

Acid pickling process

Painting process

Textile industry

Pharmacy and Health

Electroplating industry

Chlorine water and waste water treatment

Petroleum Industry

Chemical Industry

Adding acid process.

Lining process is the Patent technical

The material is virgin, unfilled lining FEP，therefore it has the following features:

(1) Considerably easier and more reliable quality control.

(2) No reduction in the permeation resistance.

(3) Pure pharmaceutical and fine chemical media: no contamination

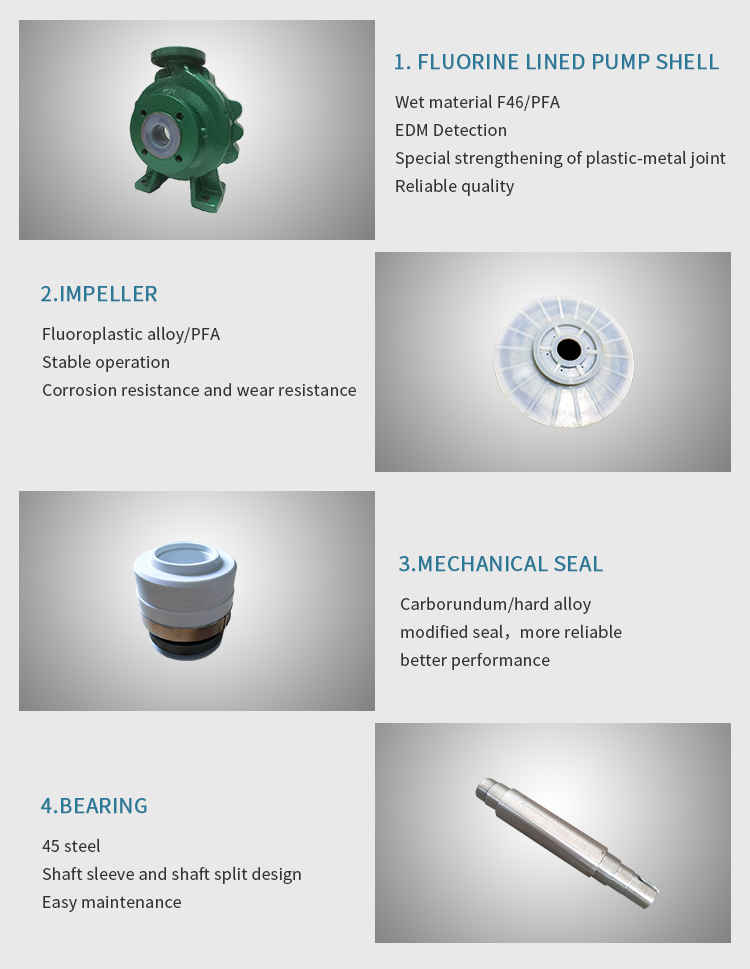

-Robust pump casing

Pump casing and cover are made of HT200 iron lined with PFA, PTFE, and the impeller is made by WCB and wrapped by PTFA, PTFE, which enables that this type of centrifugal pump could be widely used in corrosive application and wear well. With ductile cast iron armouring absorbs all the hydraulic and pipeworkforces to DIN/ISO5199/Europump 1979. In contrast to partially or non-armoured plastic pumps, no expansion joints are required. Flange with service-minded through holes to DIN;ANSI,BS;JIS. For flushing system and monitoring device as required, the draining nozzle will be offered (pump housing picture)

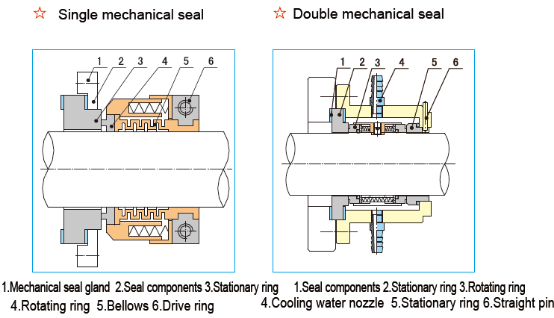

-Reliable mechanical seal

Shaft seal is outside seal, stationary seal is alumina ceramic ( 99.9%), rotating seal is PTFE filling material or according to customer request.

Closed impeller with flow-optimized vane channels: for high efficiency and low NPSH values. The metal core is protected by a thick-walled seamless plastic lining, the large metal core and increase the mechanical strength considerably even at elevated temperature and high flow rates .Secured screw connection to the shaft to against loosening if the pump is started up in the wrong direction of rotation or in the case of back-flowing media

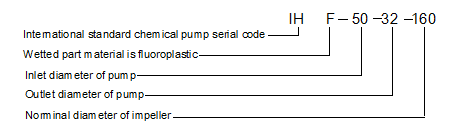

Table1:(Speed=2900r/min) Design pressure:1.6Mpa “*”stands for standard specification

Item	Model	Flow (m3/h)	Pump head (m)	Efficiency %	NPSHa (m)	Inlet*Outlet	Power (kw)	Pump &Motor Weight (kg)
1	IHF25-20-125	2	20.5	25	3	25*20	1.1	75
		*3.2	20	32
		5.5	18	46
2	IHF25-20-250	2	80	12	2.5	25*20	7.5	225
		*3.6	80	18
		5.5	78	26
3	IHF32-20-125	2	20.5	25	3	32*20	1.1	75
		*3.2	20	30
		5.5	18	46
4	IHF40-25-125	*6.3	20	30	2.5	40*25	1.5	75
		8	20	31
		10	18	32
5	IHF40-25-160	*6.3	32	30	3	40*25	3	124
		8	32	31
		10	30	32
6	IHF40-25-200	*6.3	50	20	3	40*25	5.5	170
		8	50	23
		10	48	30
7	IHF40-32-250	*6.3	80	20	5	40*32	11	255
		8	80	24
		12	78	34
8	IHF50-32-125	7	22	47	3.2	50*32	2.2	110
		*12.5	20	52
		15	16	50
9	IHF50-32-160	7	33	35	3.2	50*32	4	135
		*12.5	32	47
		15	30	47
10	IHF50-32-200	7	51	28	3.2	50*32	7.5	180
		*12.5	50	40
		15	49	48
11	IHF50-32-250	7	80	21	5	50*32	11	255
		*12.5	80	34
		15	77	38
12	IHF65-50-125	15	22	46	3.5	65*50	3	135
		*25	20	61
		35	16	67
13	IHF65-50-160	15	33	45	3.5	65*50	5.5	155
		*25	32	56
		35	30	65
14	IHF65-40-200	15	52	35	3.5	65*40	11	210
		*25	50	51
		35	46	48
15	IHF65-40-250	15	82	33	3.5	65*40	18.5	360
		*25	80	48
		35	72	50
16	IHF65-40-315	15	127	35	4	65*40	30
		*25	125	40
		35	112	38
17	IHF80-65-125	35	22	52	4	80*65	5.5	195
		*50	20	65
		60	18	70
18	IHF80-65-160	35	33	60	4	80*65	11	228
		*50	32	64
		60	27	53
19	IHF80-50-200	35	52	55	4	80*50	15	250
		*50	50	63
		60	45	55
20	IHF80-50-250	35	82	48	4.5	80*50	30	480
		*50	80	56
		60	72	50
21	IHF80-50-315	35	82	48	4.5	80*50	30
		*50	80	56
		60	72	50
22	IHF100-80-125	65	22	62	4.5	100*80	11	245
		*100	20	65
		120	17	68
23	IHF100-80-160	65	35	65	5	100*80	15	250
		*100	32	70
		110	26	65
24	IHF100-65-200	65	51	62	5	100*65	30	480
		*100	50	68
		120	43	56
25	IHF100-65-250	65	82	60	5	100*65	45	550
		*100	80	65
		120	65	70
26	IHF100-65-315	65	127	55	5.5	100*65	75
		*100	125	60
		120	112	58
27	IHF125-80-160	100	38	57	5	125*80	30	460
		*160	32	64
		180	26	52
28	IHF125-100-200	120	55	63	6	125*100	55	660
		*200	50	65
		220	45	62
29	IHF125-100-250	120	86	54	6	125*100	75	850
		*200	80	68
		210	65	61
30	IHF125-100-315	120	127	55	6	125*100	110
		*200	125	60
		220	112	58

Table 2 : Speed =1450r/min Design pressure:1.6Mpa “*”stands for standard specification

Item	Model	Flow(m3/h)	Pump head (m)	Efficiency %	NPSHa (m)	Inlet*Outlet	Power (kw)	Pump &Motor Weight (kg)
1	IHF40-32-250	*3	20	15	5	40*32	1.5
		4	20	20
		6	19.5	30
2	IHF50-32-125	3.5	4.5	40	3.2	50*32	0.55
		*6.3	5	45
		7.5	4	42
3	IHF50-32-160	3.5	9	30	3.2	50*32	0.55
		*6.3	8	40
		7.5	7.5	40
4	IHF50-32-200	3.5	12.8	22	3.2	50*32	1.1
		*6.3	12.5	33
		7.5	12.3	40
5	IHF50-32-250	3.5	20	15	5	50*32	1.5
		*6.3	20	30
		7.5	19.3	32
6	IHF65-50-125	7.5	3.8	40	3.5	65*50	0.55
		*12.5	5	55
		17.5	4	61
7	IHF65-50-160	7.5	8.8	40	3.5	65*50	1.1
		*12.5	8	51
		17.5	7.5	60
8	IHF65-40-200	7.5	13	30	3.5	65*40	1.5
		*12.5	12.5	46
		17.5	11.5	42
9	IHF65-40-250	7.5	20.5	28	3.5	65*40	3
		*12.5	20	43
		17.5	18	45
10	IHF65-40-315	7.5	32.5	35	4	65*40	5.5
		*12.5	32	40
		17.5	30	38
11	IHF80-65-125	17.5	5.5	50	4	80*65	1.1
		*25	5	64
		30	4.5	68
12	IHF80-65-160	17.5	8.3	58	4	80*65	1.5
		*25	8	62
		30	6.8	50
13	IHF80-50-200	17.5	13	48	4	85*50	2.2
		*25	12.5	57
		30	11.3	48
14	IHF80-50-250	17.5	20.5	43	4.5	80*50	5.5
		*25	20	51
		30	11.3	45
15	IHF80-50-315	17.5	32.5	45	5	80*50	7.5
		*25	32	50
		30	30	48
16	IHF100-80-125	32.5	5.5	60	4.5	100*80	1.5
		*50	5	64
		60	4.3	65
17	IHF100-80-160	32.5	8.8	62	5	100*80	2.2
		*50	8	69
		55	6.5	62
18	IHF100-65-200	32.5	12.8	62	5	100*65	5.5
		*50	12.5	68
		60	10.8	56
19	IHF100-65-250	32.5	20	60	5	100*65	7.5
		*50	20	65
		60	16.3	70
20	IHF100-65-315	32.5	32.5	55	5	100*65	11
		*50	32	60
		60	30	58
21	IHF125-80-160	50	9.5	55	5	125*80	5.5
		*80	8	62
		90	6.5	50
22	IHF125-100-200	60	13.8	60	6	125*100	11
		*100	12.5	64
		110	11.3	60
23	IHF125-100-250	60	21	53	6	125*100	15
		*100	20	69
		120	19	71
24	IHF125-100-315	60	32.5	55	6	125*100	22
		*100	32	60
		120	30	58
25	IHF150-125-250	120	22	60	5	150*125	22
		*200	20	65
		240	18	64
26	IHF150-125-315	120	35	54	5	150*125	45	700
		*200	32	63
		240	30	62
27	IHF150-125-400	120	55	5O	5.5	150*125	75	1180
		*200	50	62
		240	47	62
28	IHF200-150-250	24O	22	60	5.5	200*150	45	700
		*400	20	68
		480	17	62
29	IHF200-150-315	240	36	55	5.5	200*150	75	1180
		*400	32	64
		480	29	63
30	IHF200-150-400	240	55	52	6	200*150	110	1420
		*400	50	64
		480	46	64
31	IHF250-200-250	360	23	55	6	250*200	90
		*600	20	60
		720	18	58
32	IHF250-200-315	360	35	55	6	250*200	110
		*600	32	60
		720	28	58

Table 3: Close coupled type Speed =2900r/min Design pressure:1.6Mpa “*”stands for standard specification

Item	Model	Flow (m3/h)	Pump head (m)	Efficiency %	NPSHa (m)	Inlet*Outlet	Power (kw)	Pump &Motor Weight ( kg)
1	IHF40-25-160(D)	*6.3	32	30	3	40*25	3	85
		8	32	31
		10	30	32
2	IHF40-25-200(D)	*6.3	50	20	3	40*25	5.5	130
		8	50	23
		10	48	30
3	IHF50-32-125(D)	7	22	47	3.2	50*32	3	90
		*12.5	20	52
		15	16	50
4	IHF50-32-160(D)	7	33	35	3	50*32	4	95
		*12.5	32	47
		15	30	47
5	IHF50-32-200(D)	7	51	28	3	50*32	7.5	135
		*12.5	50	40
		15	49	48
6	IHF65-50-125(D)	15	22	46	3.5	65*50	3	90
		*25	20	61
		35	16	67
7	IHF65-50-160(D)	15	33	45	3.5	65*50	5.5	125
		*25	32	56
		35	30	65
8	IHF80-65-125(D)	35	22	52	4	80*65	5.5	125
		*50	20	65
		60	18	70

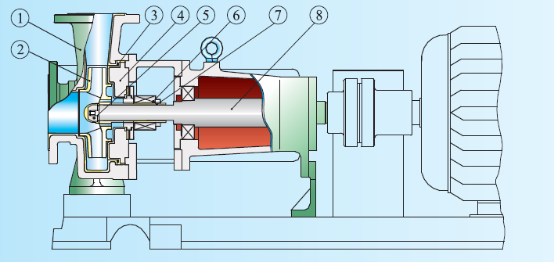

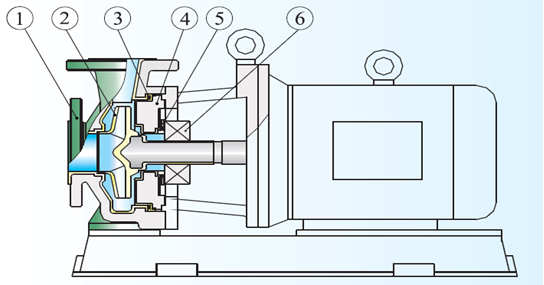

Materials of Construction
The Pump's inlet diameter <150mm

Item	Designation	Material
1	Pump housing	Cast iron HT200 with FEP/ PFA
2	Impeller	FEP fused with PTFE / PFA
3	Seal ring	Fluorubber
4	Pump cover	Cast iron HT200 with FEP/ PFA
5	Mechanical seal cover	SUS321 stainless steel
6	Mechanical seal	Silicon carbide ,hard alloy
7	Bearing box	Cast iron HT200 with F46
8	Pump shaft	45# Steel

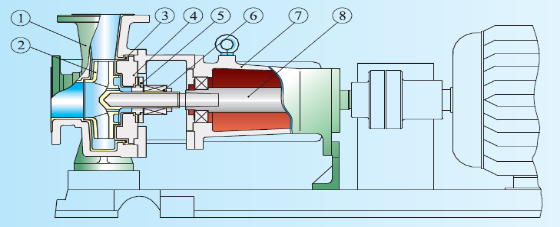

The Pump's inlet diameter ≥150mm

Item	Designation	Material
1	Pump housing	Cast iron HT200 with FEP
2	Impeller	FEP fused with PTFE
3	Seal ring	Fluorubber
4	Pump cover	Cast iron HT200 with FEP
5	Impeller cap	45# steel lined with FEP
6	Mechanical seal	Silicon carbide ,hard alloy
7	shaft sleeve	45# steel lined with FEP
8	Pump shaft	45# Steel

Item	Designation	Material
1	Pump housing	Cast iron HT200 with FEP/ PFA
2	Impeller	FEP fused with PTFE / PFA
3	Seal ring	Fluorubber
4	Pump cover	Cast iron HT200 with FEP/ PFA
5	Mechanical seal cover	SUS321 stainless steel
6	Mechanical seal	Silicon carbide ,hard alloy

S/N	Model	Inlet flange dimension					Outlet flange dimension
S/N	Model	c	a	b	e	n-Ød	k	g	i	j	n-Øt
1	IHF50-32-160(D)	50	165	125	20	4-Ø18	32	140	100	18	4-M16
2	IHF50-32-200(D)	50	165	125	20	4-Ø18	32	140	100	18	4-M16
3	IHF65-50-125(D)	65	185	145	20	4-Ø18	50	165	125	20	4-M16
4	IHF65-50-160(D)	65	185	145	20	4-M16	50	165	125	20	4-Ø18
5	IHF80-65-125(D)	80	200	160	20	8-Ø18	65	185	145	20	4-Ø18

Speed@2900RPM

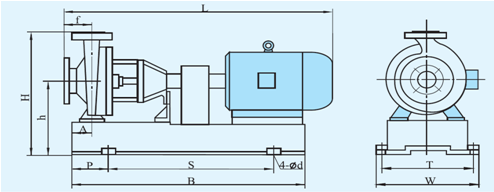

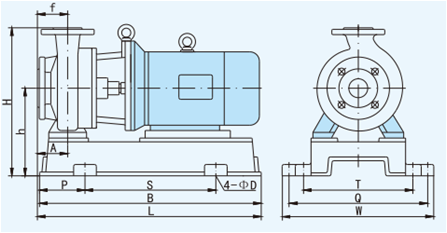

Exterior and installation dimension

Model	Exterior and installation dimension
Model	L	B	S	P	A	W	T	H	h	f	4-Ød
IHF40-25-160	1025	895	590	155	80	395	330	392	232	80	4-Ø25
IHF40-25-200	1075	990	650	170	80	450	380	440	260	80	4-Ø25
IHF40-32-250	1200	1130	720	205	95	485	435	480	280	100	4-Ø25
IHF50-32-125	950	895	590	155	80	395	330	352	212	80	4-Ø19
IHF50-32-160	1025	895	590	155	80	395	330	392	232	80	4-Ø25
IHF50-32-200	1075	990	650	170	80	450	380	440	260	80	4-Ø25
IHF50-32-250	1200	1130	720	205	95	485	435	480	280	100	4-Ø25
IHF65-50-125	995	895	590	155	80	395	330	352	212	80	4-Ø25
IHF65-50-160	1075	990	650	170	80	450	380	392	232	80	4-Ø25
IHF65-40-200	1180	1130	720	205	95	485	435	440	260	100	4-Ø25
IHF65-50-250	1350	1270	840	215	100	490	440	510	280	100	4-Ø25
IHF80-65-125	1095	990	650	170	80	450	380	392	232	100	4-Ø25
IHF80-65-160	1180	1130	720	205	95	485	435	440	260	100	4-Ø25
IHF80-50-200	1180	1130	720	205	95	485	435	460	260	100	4-Ø25
IHF80-50-250	1543	1420	940	240	95	610	540	525	300	125	4-Ø25
IHF100-80-125	1180	1130	720	205	95	485	435	440	260	100	4-Ø25
IHF100-80-160	1180	1130	720	205	95	485	435	500	280	100	4-Ø25
IHF100-65-200	1543	1420	940	240	95	610	540	525	300	100	4-Ø25
IHF125-80-160	1543	1420	940	240	95	610	540	525	300	125	4-Ø25
IHF125-100-200	1690	1620	1055	280	110	660	600	650	370	125	4-Ø28

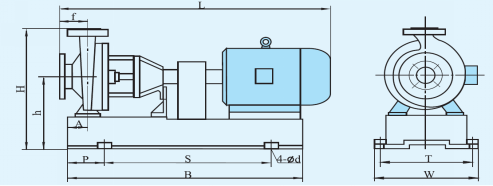

Speed @1450 RPM

Item	Model	Exterior and installation dimension
Item	Model	L	B	S	P	A	W	T	H	h	f	4-Ød
1	IHF40-32-250	945	920	600	155	80	390	350	480	280	100	4-Ø19
2	IHF50-32-125	900	820	540	140	80	360	320	352	212	80	4-Ø19
3	IHF50-32-160	900	820	540	140	80	360	320	392	232	80	4-Ø19
4	IHF50-32-200	925	820	540	140	80	360	330	440	260	80	4-Ø19
5	IHF50-32-250	945	920	600	155	80	390	350	480	280	100	4-Ø19
6	IHF65-50-125	900	820	540	140	80	360	320	352	212	80	4-Ø19
7	IHF65-50-160	925	820	540	140	80	360	330	392	232	80	4-Ø19
8	IHF65-40-200	945	920	600	155	80	390	350	440	260	100	4-Ø19
9	IHF65-40-250	1130	1000	660	170	95	450	400	510	280	100	4-Ø25
10	IHF80-65-125	925	920	540	140	80	360	330	392	232	100	4-Ø19
11	IHF80-65-160	970	920	600	155	80	390	350	440	260	100	4-Ø19
12	IHF80-50-200	1015	920	600	155	80	390	350	460	260	100	4-Ø19
13	IHF80-50-250	1250	1060	660	200	95	490	440	525	300	125	4-Ø25
14	IHF100-80-125	970	920	600	155	80	390	350	440	260	100	4-Ø25
15	IHF100-80-160	1130	1000	660	170	95	450	400	500	280	100	4-Ø25
16	IHF125-80-160	1250	1060	660	200	95	490	440	525	300	100	4-Ø25
17	IHF125-80-200	1250	1060	660	200	95	490	440	525	300	125	4-Ø25
18	IHF125-100-200	1355	1270	840	215	95	540	490	650	370	125	4-Ø28
19	IHF150-125-400	1830	1800	1200	300	140	730	670	840	440	140	4-Ø28
20	IHF200-150-315	1980	1800	1200	300	140	730	670	840	440	165	4-Ø28

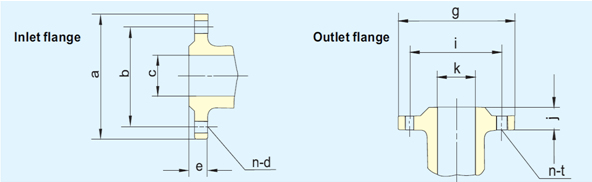

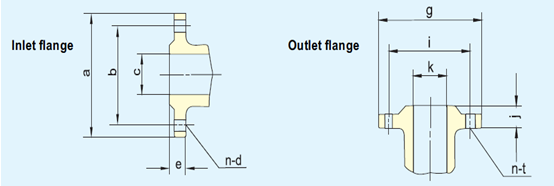

Flange dimension figure

Item	Model	Inlet flange dimension					Outlet flange dimension
Item	Model	c	a	b	e	n- Ød	k	g	i	j	n- Øt
1	IHF40-25-160	40	150	110	20	4-M16	25	115	85	18	4-M12
2	IHF40-25-200	40	150	110	20	4-M16	25	115	85	18	4-M12
3	IHF40-32-250	40	150	110	20	4-M16	32	140	100	18	4-M16
4	IHF50-32-125	50	165	125	20	4-Ø18	32	140	100	18	4-M16
5	IHF50-32-160	50	165	125	20	4-Ø18	32	140	100	18	4-M16
6	IHF50-32-200	50	165	125	20	4-Ø18	32	140	100	18	4-M16
7	IHF50-32-250	50	165	125	20	4-Ø18	32	140	100	18	4-M16
8	IHF65-50-125	65	185	145	20	4-Ø18	50	165	125	20	4-M16
9	IHF65-50-160	65	185	145	20	4-M16	50	165	125	20	4-Ø18
10	IHF65-40-200	65	185	145	20	4-Ø18	40	150	110	18	4-M16
11	IHF65-50-250	65	185	145	20	4-Ø18	40	150	110	18	4-Ø18
12	IHF80-65-125	80	200	160	20	8-Ø18	65	185	145	20	4-Ø18
13	IHF80-65-160	80	200	160	20	8-Ø18	65	185	145	20	4-Ø18
14	IHF80-50-200	80	200	160	20	8-Ø18	50	165	125	20	4-M16
15	IHF80-50-250	80	200	160	20	8-Ø18	50	165	125	20	4-Ø18
16	IHF100-80-125	100	220	180	22	8-Ø18	80	200	160	20	8-M16
17	IHF100-80-160	100	220	180	22	4-M16	80	200	160	20	4-M16
18	IHF100-65-200	100	220	180	22	8-Ø18	65	185	145	20	4- Ø18
19	IHF125-80-160	125	250	210	22	8-Ø18	80	200	160	20	8-Ø18
20	IHF125-100-200	125	250	210	22	8-M16	100	220	180	20	8-M16
21	IHF150-15-400	150	285	240	30	8-Ø20	125	245	210	27	8-M16
22	IHF200-150-315	200	340	295	33	12-Ø23	150	285	240	28	8-M20
23	IHF200-150-400	200	340	295	33	12-Ø23	150	285	240	28	8-M20

Table3: Short-Bracket Design pressure:1.6Mpa “*”stands for standard specification

Item	Model		Speed n=2900r/min
		Flow (m3/h)	Pump head (m)	Efficiency %	NPSHa (m)	Inlet*Outlet	Power (kw)	Pump &Motor Weight ( kg)
1	IHF40-25-160(D)	*6.3	32	30	3.0	40*25	3	85
		8	32	31
		10	30	32
2	IHF40-25-200(D)	*6.3	50	20	3.0	40*25	5.5	130
		8	50	23
		10	48	30
3	IHF50-32-125(D)	7	22	47	3.2	50*32	3	90
		*12.5	20	52
		15	16	50
4	IHF50-32-160(D)	7	33	35	3.0	50*32	4	95
		*12.5	32	47
		15	30	47
5	IHF50-32-200(D)	7	51	28	3.0	50*32	7.5	135
		*12.5	50	40
		15	49	48
6	IHF65-50-125(D)	15	22	46	3.5	65*50	3	90
		*25	20	61
		35	16	67
7	IHF65-50-160(D)	15	33	45	3.5	65*50	5.5	125
		*25	32	56
		35	30	65
8	IHF80-65-125(D)	35	22	52	4.0	80*65	5.5	125
		*50	20	65
		60	18	70

S/N	Model	Outline and installation dimension
S/N	Model	L	B	S	P	A	W	T	H	h	f	4-Ød
1	IHF50-32-160(D)	590	500	280	110	80	360	300	392	232	80	4-Ø20
2	IHF50-32-200(D)	600	540	300	120	80	400	355	440	260	80	4-Ø20
3	IHF65-50-125(D)	590	500	280	110	80	360	300	392	212	80	4-Ø20
4	IHF65-50-160(D)	600	540	300	120	80	400	355	440	232	80	4-Ø25
5	IHF80-65-125(D)	600	540	300	120	80	400	355	440	232	100	4-Ø25

Flange dimension

S/N	Model	Inlet flange dimension					Outlet flange dimension
S/N	Model	c	a	b	e	n-Ød	k	g	i	j	n-Øt
1	IHF50-32-160(D)	50	165	125	20	4-Ø18	32	140	100	18	4-M16
2	IHF50-32-200(D)	50	165	125	20	4-Ø18	32	140	100	18	4-M16
3	IHF65-50-125(D)	65	185	145	20	4-Ø18	50	165	125	20	4-M16
4	IHF65-50-160(D)	65	185	145	20	4-M16	50	165	125	20	4-Ø18
5	IHF80-65-125(D)	80	200	160	20	8-Ø18	65	185	145	20	4-Ø18

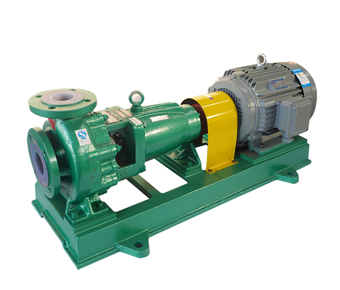

IHF centrifugal chemical pump

Products List

Contact Us

Hot categories

About us

Pumps

Valves

Global market
