IH Stainless Steel Centrifugal Pump

IH-type pump is a horizontal single-stage, single-suction chemical pump for industrial, agricultural and drainage. it is mainly used for transferring various corrosive liquids, and liquids containing a small amount of particles. The production is in strict accordance with ISO2858.

Operating range
Capacity: 6.3m3/h-400m3/h; 29-1761GPM
Head: 5-125m; 16-410feet
Temperature: -20°C-105°C; 68°F-221°F
Max. working pressure: 1.6Mpa

Download PDF

PREVIOUS DCZ type petrochemical process pump

NEXT IHF centrifugal chemical pump

Application

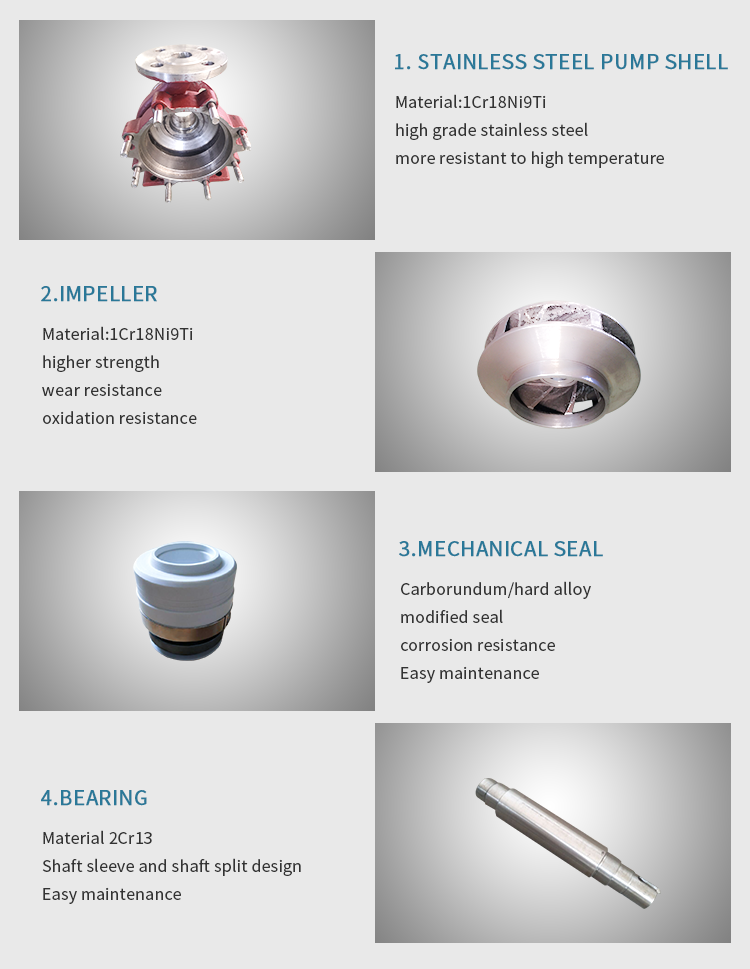

Design Feature
Model and Parameter
Material of Construction
Installation Drawing

Media

acid, alkali,

salt solution,

strong oxidant,

organic solvents,

corrosive slurries, solvents,

hydrocarbons and other strong corrosive medium,

ammonia water ion film caustic soda,

wastewater

Industry

Acid pickling process

Painting process

Textile industry

Pharmacy and Health

Electroplating industry

Chlorine water and waste water treatment

Petroleum Industry

Chemical Industry

Adding acid process.

IH50-32-160(A)

IH: International standard chemical pump series code

50: Inlet suction size 50mm

32: Discharge suction size 32mm

160: Impeller normial diameter 160mm

A: Variant product code

Item	Model	Flow (m3/h)	Pump head (m)	Inlet(mm)	Outlet(mm)	NPSHa (m)	Speed(RPM)	Power (kw)
1	IH50-32-125	12.5	20	50	32	2	2900	2.2
1	IH50-32-125	6.3	5	50	32	2	1450	0.55
2	IH50-32-160	12.5	32	50	32	2	2900	3
2	IH50-32-160	6.3	8	50	32	2	1450	0.55
3	IH50-32-200	12.5	50	50	32	2	2900	5.5
3	IH50-32-200	6.3	12.5	50	32	2	1450	1.1
4	IH50-32-250	12.5	80	50	32	2	2900	11
4	IH50-32-250	6.3	20	50	32	2	1450	2.2
5	IH65-50-125	25	20	65	50	2	2900	3
5	IH65-50-125	12.5	5	65	50	2	1450	0.55
6	IH65-50-160	25	20	65	50	2	2900	5.5
6	IH65-50-160	12.5	5	65	50	2	1450	0.75
7	IH65-40-200	25	32	65	50	2	2900	11
7	IH65-40-200	12.5	8	65	50	2	1450	1.5
8	IH65-40-250	25	50	65	40	2	2900	15
8	IH65-40-250	12.5	12.5	65	40	2	1450	3
9	IH65-40-315	25	125	65	40	2	2900	30
9	IH65-40-315	12.5	32	65	40	2	1450	5.5
10	IH80-65-125	50	20	80	65	3	2900	5.5
10	IH80-65-125	25	5	80	65	2.5	1450	0.75
11	IH80-65-160	50	32	80	65	2.3	2900	11
11	IH80-65-160	25	8	80	65	2.3	1450	1.5
12	IH80-50-200	50	50	80	50	2.5	2900	15
12	IH80-50-200	25	12.5	80	50	2	1450	2.2
13	IH80-50-250	50	80	80	50	2.5	2900	30
13	IH80-50-250	25	20	80	50	2	1450	5.5
14	IH80-50-315	50	125	80	50	2.5	2900	45
14	IH80-50-315	25	32	80	50	2.5	1450	7.5
15	IH100-80-125	100	20	100	80	4.2	2900	11
15	IH100-80-125	50	5	100	80	3.4	1450	1.5
16	IH100-80-160	100	32	100	80	3.9	2900	15
16	IH100-80-160	50	8	100	80	2.5	1450	2.2
17	IH100-65-200	100	50	100	65	3.6	2900	22
17	IH100-65-200	50	12.5	100	65	2.5	1450	3
18	IH100-65-250	100	80	100	65	3.6	2900	37
18	IH100-65-250	50	20	100	65	2.5	1450	5.5
19	IH100-65-315	100	125	100	65	3.2	2900	75
19	IH100-65-315	50	32	100	65	2	1450	11
20	IH125-100-250	200	50	125	100	5	2900	45
20	IH125-100-250	100	12.5	125	100	2.9	1450	7.5
21	IH125-100-250	200	80	125	100	4.5	2900	75
21	IH125-100-250	100	20	125	100	2.3	1450	11
22	IH25-100-315	200	125	125	100	4.5	2900	110
22	IH25-100-315	100	32	125	100	2.5	1450	22
23	IH25-100-400	100	50	125	100	2.5	1450	30
24	IH150-125-250	200	20	150	125	2.8	1450	18.5
25	IH150-125-315	200	32	150	125	2.8	1450	30
26	IH150-125-400	200	50	150	125	2.5	1450	55
27	IH200-150-250	400	20	200	150	2.8	1450	37
28	IH200-150-315	400	32	200	150	3.5	1450	55
29	IH200-150-400	400	50	200	150	3.5	1450	90

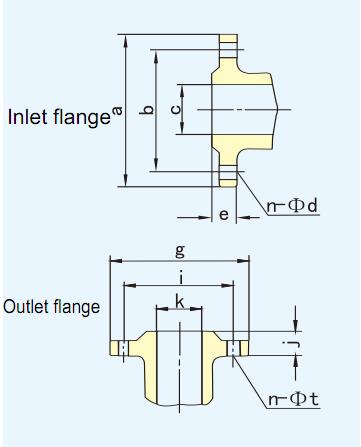

Flange Dimension

Model	Inlet Flange Dimension					Inlet Flange Dimension
Model	c	a	b	e	n-∮d	k	g	I	j	n-∮d
IH50-32-***	50	165	125	20	4-∮18	32	140	100	18	4-∮18
IH65-50-***	65	185	145	20	8-∮18	50	165	125	20	4-∮18
IH65-40-***	65	185	145	20	8-∮18	40	150	110	18	4-∮18
IH80-65-***	80	200	160	20	8-∮18	65	185	145	20	8-∮18
IH80-50***	80	200	160	20	8-∮18	60	165	125	20	4-∮18
IH100-80-***	100	220	180	22	8-∮18	80	200	160	20	8-∮18
IH100-65-***	100	220	180	22	8-∮18	65	185	145	20	8-∮18
IH125-100-***	125	250	210	22	8-∮18	100	220	180	20	8-∮18
IH200-150-***	200	340	295	24	12-∮22	150	285	240	24	8-∮22

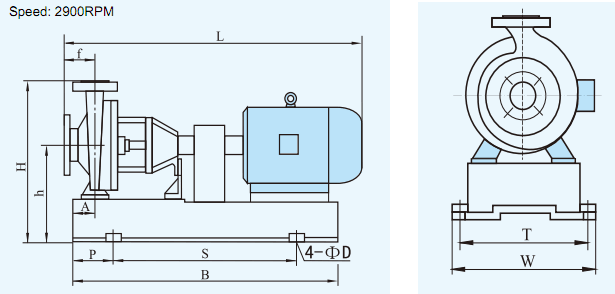

Speed: 2900 RPM

model	Outline and installation dimensions
model	L	B	S	P	A	W	T	H	h	f	G	n-∮D
IH50-32-125	995	895	590	155	80	395	330	352	212	80	/	4-∮19
IH50-32-160	1025	895	590	155	80	395	330	392	232	80	/	4-∮19
IH50-32-200	1075	990	650	170	80	450	380	440	260	80	/	4-∮25
IH50-32-250	1200	1130	720	205	95	485	435	480	280	100	/	4-∮28
IH80-65-125	995	895	590	155	80	395	330	352	212	80	/	4-∮19
IH65-50-160	1075	990	650	170	80	450	380	392	232	80	/	4-∮25
IH65-40-200	1180	1130	720	205	95	485	435	440	260	100	/	4-∮25
IH65-40-250	1350	1270	840	215	100	490	440	505	280	100	/	4-∮28
IH65-40-315	1530	1460	940	260	95	620	550	550	300	125	/	4-∮28
IH80-65-125	1095	990	650	170	80	450	380	392	232	100	/	4-∮19
IH80-65-160	1180	1130	720	205	95	485	435	440	260	100	/	4-∮25
IH80-50-200	1180	1130	720	205	95	485	435	460	260	125	/	4-∮25
IH80-50-250	1540	1380	920	240	95	610	530	525	300	125	/	4-∮28
IH80-50-315	1540	1460	940	260	95	620	550	605	326	100	/	4-∮28
IH100-80-125	1180	1130	720	205	95	485	435	440	260	100	/	4-∮25
IH100-80-160	1180	1130	720	205	95	485	435	500	280	100	/	4-∮25
IH100-65-200	1540	1380	920	240	95	610	530	525	300	100	/	4-∮28
IH100-65-315	1650	1620	940	260	110	620	550	580	300	125	/	4-∮28
IH125-100-200	1780	1800	1200	300	140	730	760	685	405	140	/	4-∮28

Company Name*:

Country:

Email*:

Tel:

Message*:

Products List

Chemical Pump

Magnetic Drive pump

API Centrifugal Pumps

Contact Us

Tel: +86 21 68415960
Fax: +86 21 68415960
Email: [email protected]
Skype: info_551039
WhatsApp: +86 15921321349
HQ: D/Building No. 08 Pujiang Intelligen CE Valley, No.1188 Lianhang Road Minhang District Shanghai 201 112 P.R.China.
Factory: Maolin,Jinocuan County,Xuancheng City,Anhui,Province,China

Hot categories

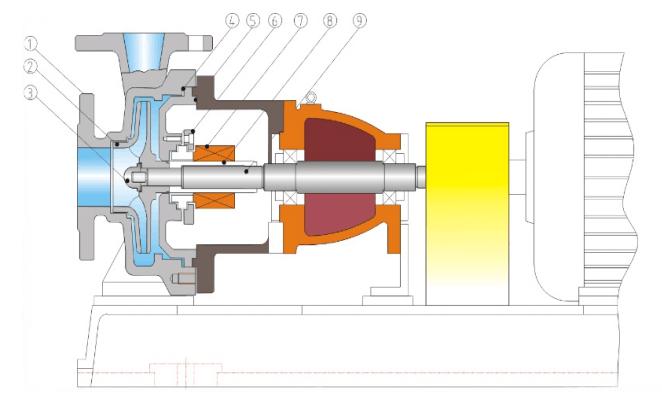

Item	Designation	Material
1	Pump casing	1Cr18Ni9Ti
2	Impeller	1Cr18Ni9Ti
3	Impeller nut	1Cr18Ni9Ti
4	Seal ring	Filled PTFE
5	Pump cover	1Cr18Ni9Ti
6	Seal gland	1Cr18Ni9Ti
7	Mechanical seal	SIC/TC
8	shaft sleeve	1Cr18Ni9Ti
9	Shaft	2Cr13
