FYH Chemical Pump

FYH is a vertical submersible pump. The wetted parts are made from fluoroplastic, which makes the pump has features of anti-corrosion, high efficiency and light weight. There is no liquid filling need for pump operating, and it is easy to repair.

PREVIOUS IHF centrifugal chemical pump

NEXT FSB Centrifugal Chemical Pump

Application
Design Feature

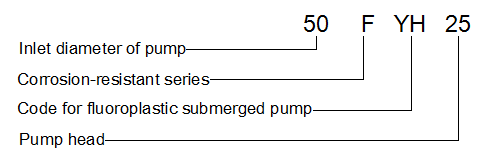

Model and Parameter
Material of Construction
Installation Drawing

Pumping

Acids & lyes

Organic solvent

High corrosive medium

Application

Automobile pickling
Non-ferrous metal metallurgy
Caustic soda
Pesticide
Electronics
Papermaking
Rare-earth separation
Pharmaceutical
Pulp production
Sulfuric acid industry
Environmental protection industry

Company Name*:

Country:

Email*:

Tel:

Message*:

Products List

Chemical Pump

Magnetic Drive pump

API Centrifugal Pumps

Contact Us

Tel: +86 21 68415960
Fax: +86 21 68415960
Email: [email protected]
Skype: info_551039
WhatsApp: +86 15921321349
HQ: D/Building No. 08 Pujiang Intelligen CE Valley, No.1188 Lianhang Road Minhang District Shanghai 201 112 P.R.China.
Factory: Maolin,Jinocuan County,Xuancheng City,Anhui,Province,China

Hot categories

Model	Flow (m3/h)	Head (m)	Speed(RPM)	Shaft Power (KW)	Motor Power(KW)	Efficiency (%)	Submerged in tank
25FYH-25	7.2	25	2900	1.6	3	45	0.5/1/1.5
50FYH-25	25	25	2900	3.15	4	54	0.5/1/1.5
80FYH-25	50	25	2900	5.2	7.5	64	0.5/1/1.5

Item	Designation	Material
1	Pump housing	FEP
2	Impeller	FEP
3	Packing	PTFE
4	Fitting nut	45# steel/FEP
5	Pump cover	FEP
6	Shaft sleeve	SIC
7	Shaft	45# steel/FEP

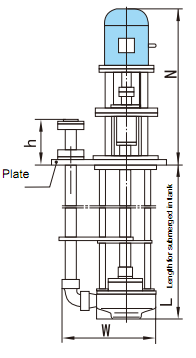

Model	Exterior and installation dimension
Model	W	h	N	L
25FYH-25	655	330	160	0.5/1/1.5
50FYH-25	655	330	160	0.5/1/1.5
80FYH-25	840	450	160	0.5/1/1.5

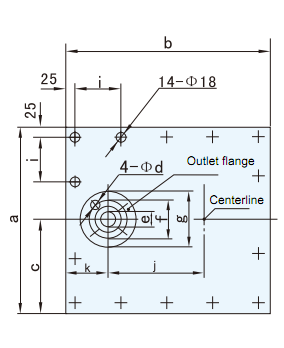

Model	Exterior and installation dimension
Model	a	b	c	4- Ød	e	f	g	i	k	j
25FYH-25	450	490	225	4- Ø14	Ø25	Ø100	Ø130	110	100	200
50FYH-25	450	490	225	4- Ø14	Ø40	Ø110	Ø140	110	100	205
80FYH-25	490	550	245	4- Ø18	Ø65	Ø150	Ø180	125	130	225
