Chemical Pump
Home > Products > Chemical Pump
  • https://www.sbmc.com.cn/upload/img/dcz-type-petrochemical-process-pump.png
  • DCZ type petrochemical process pump

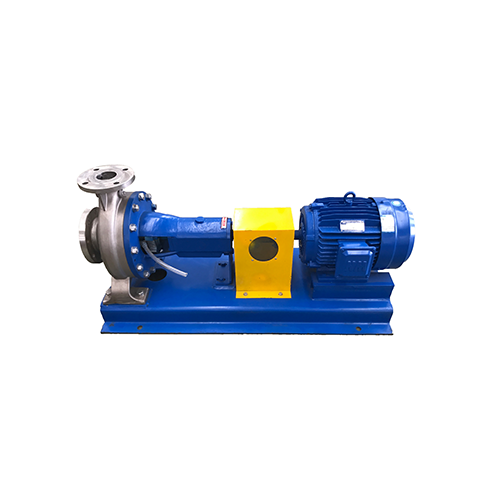

DCZ type petrochemical process pump

The DCZ series standard chemical pumps are horizontal single-stage singlesuction centrifugal pumps with dimensions and performance in accordance with DIN24256/ISO2858.The performance range of DCZ series standard chemical pumps includes all the performances of IH series standard chemical pumps. Its efficiency, cavitation performance and other indicators exceed IH series chemical pumps, and can be exchanged with IH series chemical pumps.

Download PDF

Contact us

DCZ type petrochemical process pump
  • Application

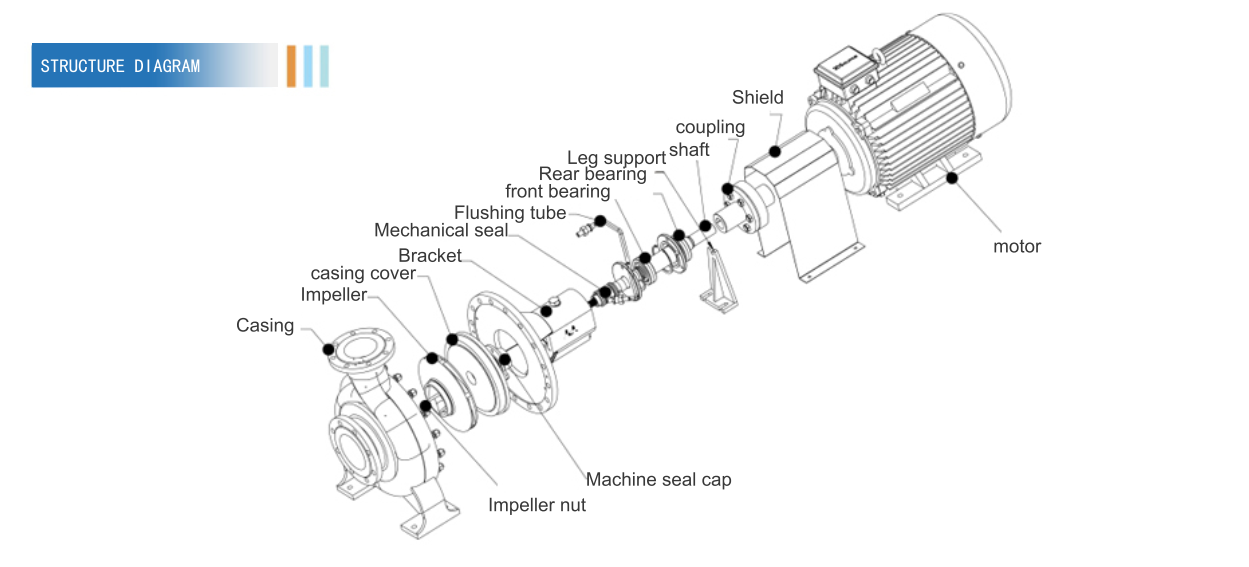

  • Design Feature

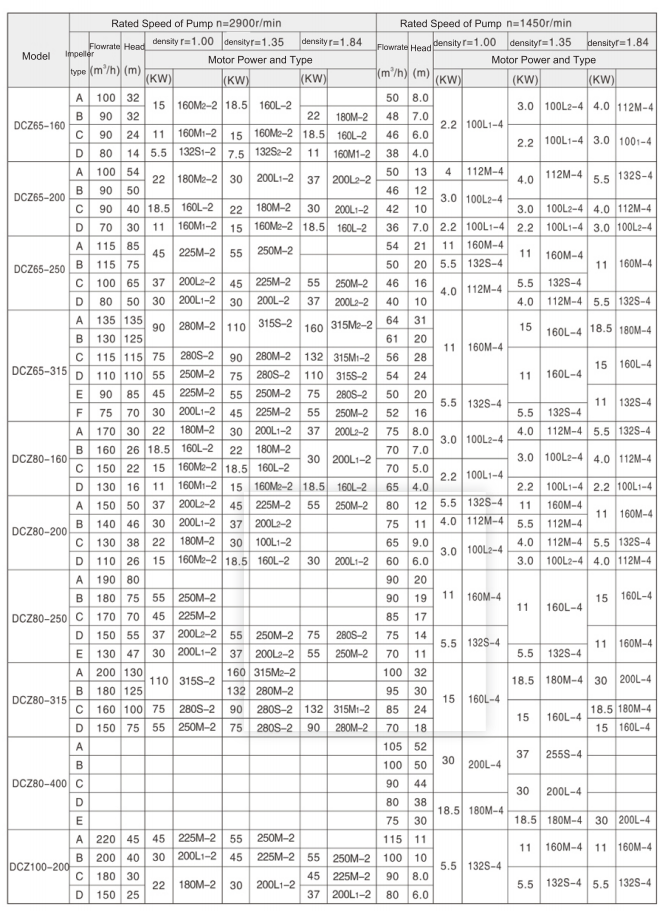

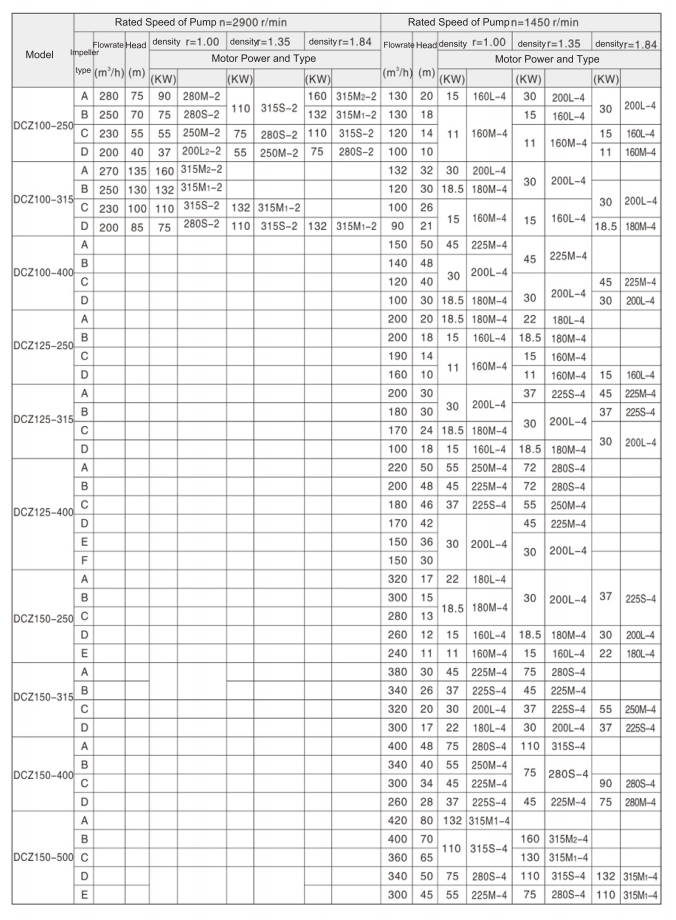

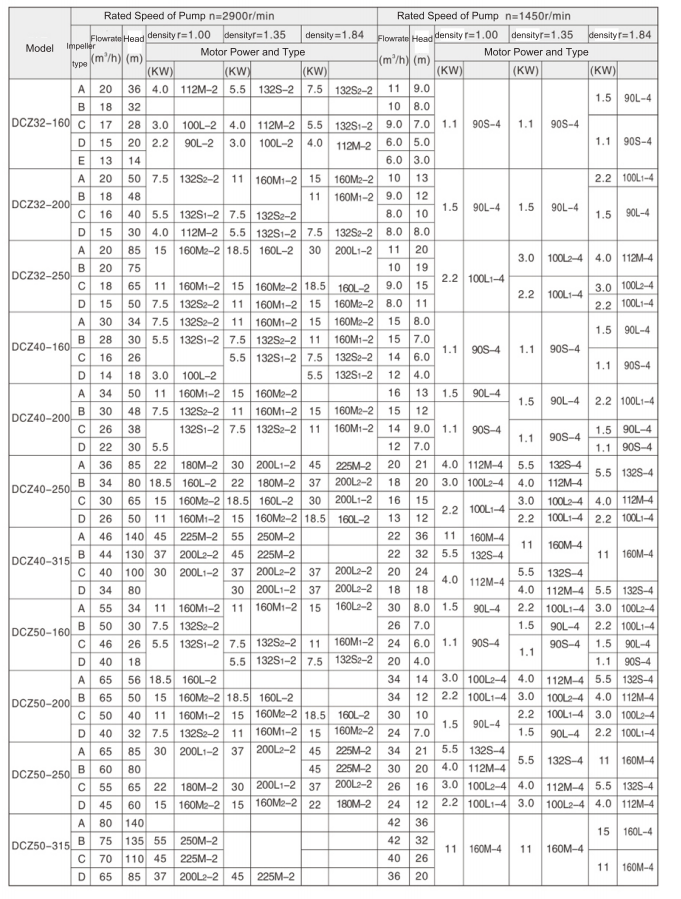

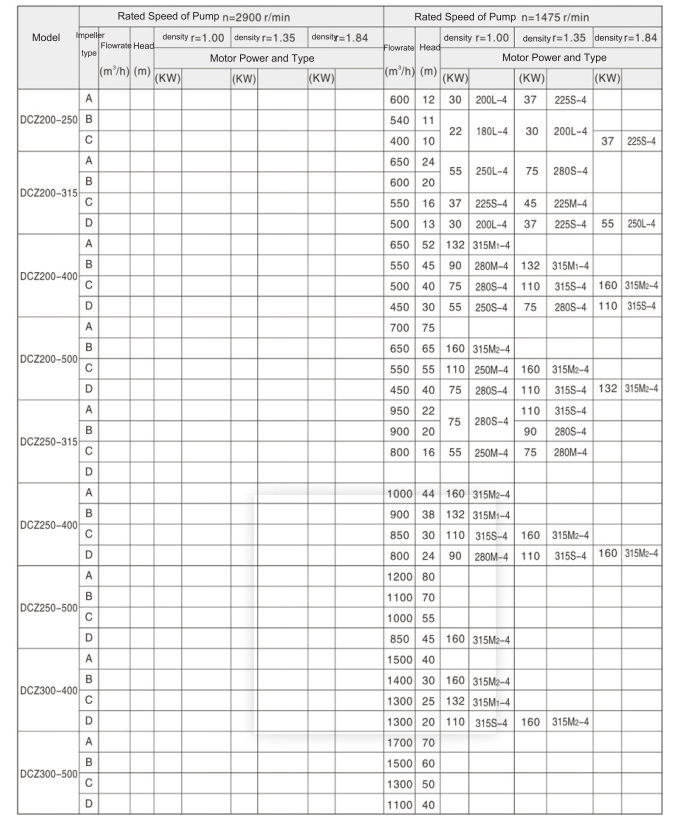

  • Model and Parameter
  • Material of Construction
  • Installation Drawing

It can be widely used to transport inorganic acids and organic acids such as sulfuric acid, nitric acid, hydrochloric acid and phosphoric acid at various temperatures and concentrations. Alkaline solutions such as sodium hydroxide and sodium carbonate at various temperatures and concentrations. Various salt solutions and various liquid petrochemicals, organic compounds, and other corrosive materials and products are included .
